Behind every seamless telecom network stands a critical yet often overlooked power safeguard. When the utility power fails, the task of keeping IDC data centers, telecom hub buildings and backbone base station clusters online falls to the backup power source: the diesel generator set. As telecom loads grow in scale and supply voltage rises, the 10.5kV high-voltage diesel generator set has become a mainstream choice for large telecom sites. This article explains its technical requirements and key notes to help with selection and maintenance.
1. Why Telecom Needs High-Voltage Diesel Generator Sets
Traditional telecom sites use 380V low-voltage sets for nearby power supply. However, when loads are large, supply distances are long, and machine rooms are scattered, low-voltage schemes suffer from voltage drop, larger cable cross-sections and higher losses. A 10.5kV high-voltage set connects directly to the site's 10kV distribution system and switches automatically with the utility at the high-voltage side. It offers higher voltage level, lower transmission loss, less cabling and larger capacity, making it ideal backup power for primary and secondary telecom loads.
2. What Is a 10.5kV High-Voltage Diesel Generator Set

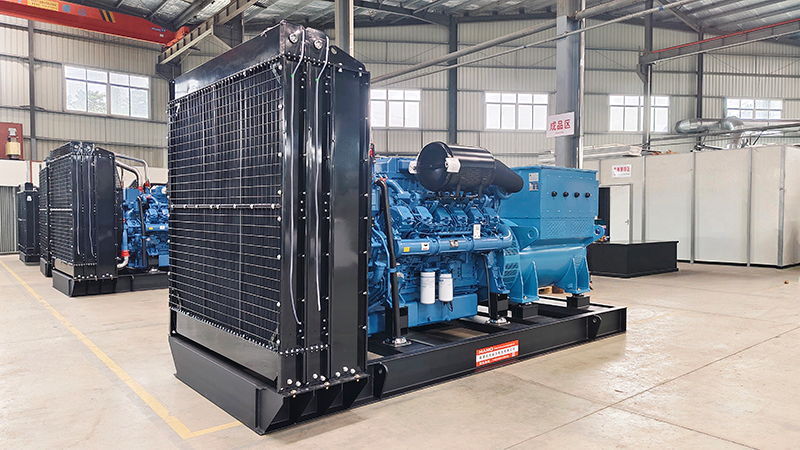

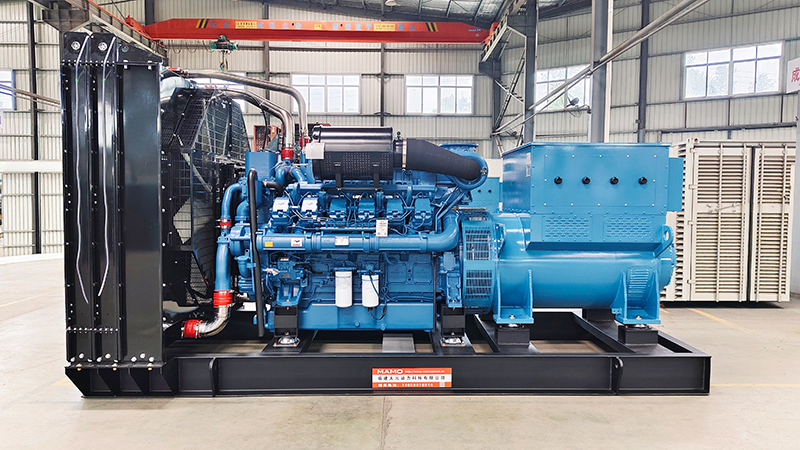

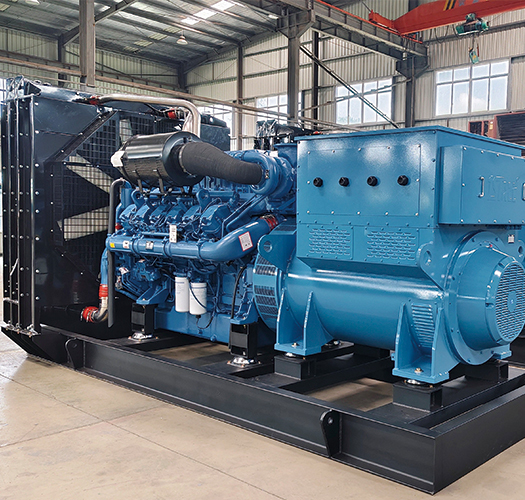

It is a complete set driven by a diesel engine that powers a 10.5kV high-voltage synchronous generator, typically comprising the diesel engine, generator, high-voltage outgoing panel, control system and an indoor or containerized housing. The 10.5kV output connects directly into the telecom high-voltage distribution system, forming a "utility primary, generator backup" dual-supply scheme so that telecom equipment keeps running continuously after a utility outage.
3. Core Technical Requirements
3.1 Basic Operating Conditions
The set must adapt to different telecom site environments: ambient temperature generally -10°C to +40°C, with cold-start kits (such as water jacket heaters and battery insulation boxes) for cold regions; altitude up to 1000m, with derating for the generator and circuit breaker above this; relative humidity generally up to 95% (non-condensing), with dehumidification to prevent creepage flashover in the high-voltage panel. The set can be installed indoors or made into a containerized all-in-one unit to save civil works and speed up delivery.
3.2 Performance Specifications
|
Item |
Key Requirement |
|
Rated parameters |
10.5kV, three-phase AC, 50Hz |
|
Voltage regulation |
Steady-state ≤±2.5%; transient ≤±15%; recovery ≤0.5s |
|
Frequency regulation |
Steady-state ≤±1%; transient deviation ≤±5%; recovery ≤2s |
|
Starting capability |
Auto-start and load within 15s after utility loss (≤10s for critical hubs); 3 consecutive auto-start attempts |
|
Load capability |
Continuous 100% rated load; 50% step load; short-term 110% for 1h |
|
Harmonics |
No-load THD ≤5%; THD ≤8% with nonlinear telecom loads |
|
Insulation/withstand |
Insulation and withstand per 10kV class; insulation resistance ≥1000MΩ (2500V megger) |
3.3 Diesel Engine
A four-stroke, turbocharged and intercooled engine with an electronic governor is recommended for frequency stability. Diesel grades 0#/-10# are typical; the fuel tank should support at least 8 hours of continuous full-load operation, optionally with a daily tank plus storage tank. Cooling is water-cooled, with a water jacket heater that keeps the block warm during normal utility supply for fast cold starts. Mandatory protections include low oil pressure, high water temperature, overspeed, underspeed, emergency stop and low fuel level.
3.4 High-Voltage Generator and Panel
The generator is a 10.5kV high-voltage synchronous machine with Class F insulation, Class B temperature-rise rating, brushless excitation and an AVR. The high-voltage outgoing panel should use a vacuum circuit breaker and be equipped with voltage indication, earthing switch, surge arrester, phase-sequence protection and zero-sequence earthing protection, with PT/CT for voltage, current, power and energy measurement. Overcurrent, instantaneous, zero-sequence (earth fault), over/under-voltage and over/under-frequency protections are essential, acting on an "alarm then delayed trip" logic with hard-wired fault signals uploaded to the unified telecom environmental monitoring (DCIM) system.
3.5 Control System
The controller should support automatic utility/generator changeover logic with local and remote control, connecting to the telecom DCIM system via dry contacts and RS485 (Modbus-RTU). Parameters to collect and upload include utility voltage, generator voltage/current/frequency/power, oil temperature, oil pressure, fuel level, breaker status and all alarms, with history of alarms, running hours and start/stop records. Critically, the high-voltage side must implement both electrical and mechanical interlocking to prevent parallel back-feeding between the utility and the generator at 10kV side — the highest safety red line in telecom power supply.
3.6 Structure and Protection
Indoor sets are generally rated at least IP20, and containerized outdoor units at IP54. The base is fitted with anti-vibration mounts, and the engine, generator and high-voltage panel are isolated to prevent loosening of high-voltage joints. High-voltage areas require safety signs and interlocked doors that trip the breaker upon opening to ensure personnel safety.
4. Design and Selection Notes
4.1 Capacity Selection
Telecom loads are dominated by switch-mode power supplies and UPS, with a high share of nonlinear loads, so capacity should not be sized by active power alone. A factor of 1.2–1.5 times the total active telecom load is recommended, verifying starting inrush current and the impact of UPS rectifier harmonics on the generator, adding an output reactor if necessary. For loads behind a step-up transformer, transformer magnetizing inrush must also be considered to avoid false tripping during generator start.
4.2 Supply Interlocking (Most Critical)
Telecom backup power is generally a "backup, non-paralleling" scheme: paralleling 10kV utility and generator is strictly prohibited. High-voltage changeover should use vacuum-breaker electrical interlocking to prevent simultaneous closing of both sources; an anti-back-feeding interlock must block the generator closing circuit while utility power is present; and the low-voltage control supply should be dual-fed from the utility and the set's own batteries to avoid control-power failure.
4.3 Earthing System
The set housing, high-voltage panel, container and neutral point should all connect to the telecom building's combined earthing grid, generally with an earthing resistance of no more than 1Ω. The generator neutral earthing method should match the existing 10kV system on site (commonly ungrounded or via an arc-suppression coil) and must not be arbitrarily changed to solid earthing; the metal screens of high-voltage cables should be earthed at both ends.
4.4 Cables and Primary Circuit
Outgoing cables should be YJV22-8.7/10kV copper power cables, sized for current-carrying capacity and thermal stability. Route high-voltage cables with clearance for maintenance and avoid long parallel runs in the same trench as low-voltage control cables to prevent interference. Use cold-shrink or heat-shrink terminations with proper water and moisture protection, and shield container-internal cables from prolonged vibration.
5. Installation and Commissioning Notes
Use a concrete foundation with anti-vibration pads; container bases should have drainage to prevent flooding of high-voltage components. Ensure adequate ventilation and dust protection at air inlets, since high temperatures derate the set. The fuel system needs fire-retardant partitions, overflow pipes and leak detection, with static earthing on piping. During commissioning, complete insulation resistance and withstand tests; set protection values (coordinated with upstream 10kV protection to avoid over-tripping); perform auto-start on utility loss, load and step-load tests; verify the anti-back-feeding interlock; and check DCIM telemetry and alarms so all fault signals upload correctly. Keep all test records archived.
6. Operation and Maintenance Notes
Daily inspections focus on abnormal noise, condensation and discharge traces in the high-voltage panel, plus battery voltage and water jacket heater status. Telecom practice generally calls for monthly no-load or light-load test runs and semi-annual load test runs; prolonged no-load operation causes carbon build-up, so running at no less than 30% load is recommended. High-voltage operations require two-person teams with certification, strictly following shutdown, voltage verification, earthing and tagging procedures. Keep spares for the vacuum circuit breaker, PT, CT, controller, AVR and sensors; fit zinc-oxide surge arresters and perform insulation and earthing checks before each lightning season.
Conclusion
The 10.5kV high-voltage diesel generator set is a core safeguard for highly reliable telecom power supply. Choosing the right scheme, meeting technical requirements, and following design interlocking and maintenance practices turn "no downtime on power failure" into reality. We hope this article helps you better understand the system and keep your telecom sites powered safely and reliably.
