Low-voltage diesel generator sets serve as core emergency power supply equipment for modern factories, commercial buildings, hospitals, data centers, municipal projects and other critical scenarios. In addition to stable and efficient power generation performance, a complete and sensitive safety protection system is an essential guarantee for reliable operation. Equipped with comprehensive protection functions, the generator set can issue early warnings and trigger emergency shutdowns in case of operating abnormalities, effectively avoiding equipment burnout, circuit failures and potential safety hazards, while greatly improving operational stability and service life.

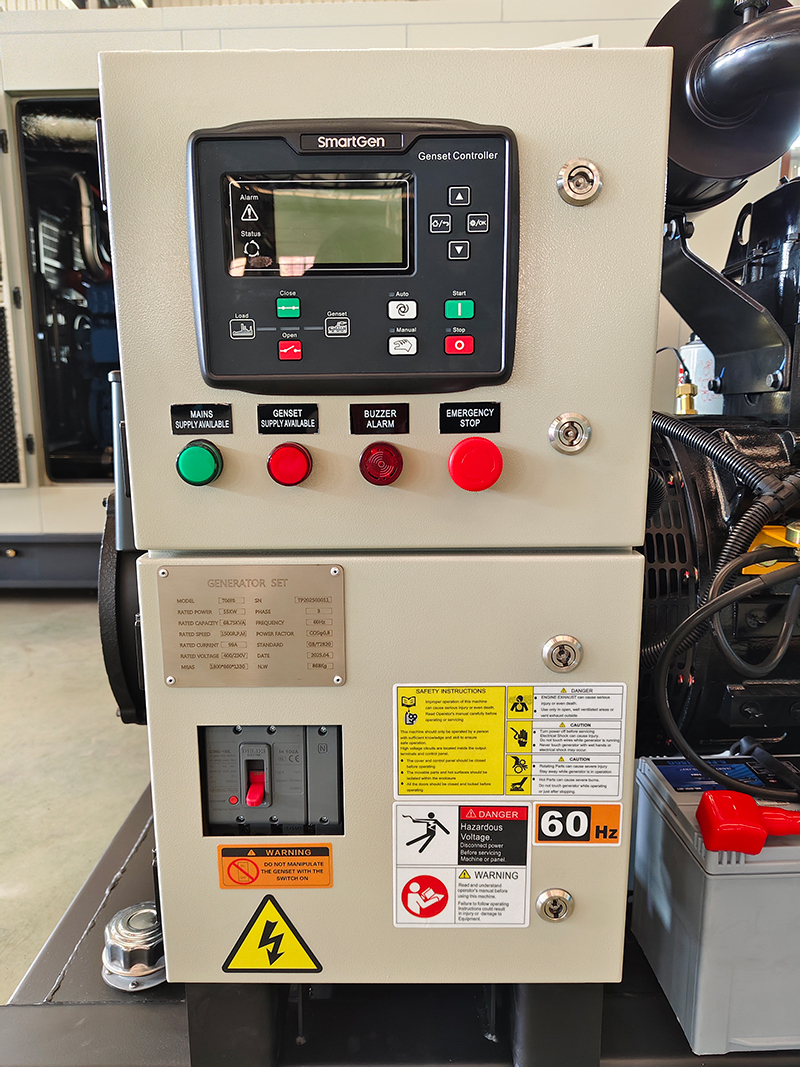

Standard low-voltage diesel generator sets are equipped with intelligent full-range protection systems. The built-in controller monitors the unit’s operating status 24/7 with a two-level protection mechanism including audio-visual alarm and emergency shutdown. This design allows maintenance personnel sufficient time to handle minor faults and realizes rapid shutdown protection for severe abnormalities, ensuring maximum operational safety. Below is a detailed introduction to the standard protection functions of low-voltage diesel generator sets.
I. Core Protection Functions of Diesel Engine
As the power core of the generator set, the diesel engine faces the highest risk of mechanical failures, and all the following protection functions come as standard factory configuration.
1. Low Oil Pressure Protection
Engine oil is a vital medium for diesel engine lubrication and heat dissipation. The system monitors real-time oil pressure. It will trigger an audio-visual alarm when the oil pressure is low, and execute an emergency shutdown once the pressure drops below the safe threshold. This prevents severe mechanical damages such as bearing wear, crankshaft scratching and shaft seizure caused by insufficient lubrication, making it the most fundamental and critical protection function of the unit.
2. High Coolant Temperature Protection
Designed for water-cooled diesel generator sets, this function Real-time monitors coolant temperature. When the unit is overloaded, suffers poor heat dissipation or water shortage leading to overheating, the system will send an early warning first. Continuous over-temperature will trigger a shutdown protection, effectively avoiding cylinder scoring, cylinder block deformation and mechanical damage caused by excessive engine temperature.
3. Over-speed Protection (Runaway Protection)
Over-speed protection is the highest-priority safety protection of the generator set. In case of excessive speed caused by fuel control system failure or sudden load drop, the system will cut off the fuel supply and shut down the unit immediately to prevent diesel engine runaway and avoid major equipment damage and safety accidents.
4. Start Failure Protection
In automatic start mode, the system will terminate the start process and trigger an alarm after multiple failed start attempts. This prevents burnout of the starter and battery caused by long-term overload operation and protects the entire starting system.
5. Battery Voltage Abnormality Protection
The system Real-time monitors the voltage of the starting battery. It will send an alarm in case of overvoltage or undervoltage, reminding maintenance personnel to troubleshoot battery aging, charging faults and poor line contact, ensuring the unit can start normally at any time.
II. Electrical Output Protection Functions of Generator
Electrical protection functions are designed to stabilize power quality, protect terminal electrical equipment, and prevent mutual damage to generator sets and electrical equipment caused by grid and load faults.
1. Overvoltage / Undervoltage Protection
The system continuously monitors three-phase output voltage. Early warnings will be triggered for abnormal voltage deviation, and emergency shutdown will be activated for severe voltage anomalies. Overvoltage will directly burn out precision terminal equipment, while undervoltage will cause overheating damage to motors and electrical appliances. This function fully guarantees the safety of power consumption equipment.
2. Over-frequency / Under-frequency Protection
The standard industrial power frequency is 50Hz. Speed abnormalities will directly lead to frequency deviation. The system Real-time monitors output frequency and implements protection in case of frequency overload, ensuring stable power quality and reliable operation of precision loads and industrial equipment.
3. Overload Protection
When the actual load power exceeds the rated power of the unit and causes long-term overload operation, the system will first issue an overload alarm. Sustained overload will trigger shutdown protection to prevent generator winding overheating, insulation aging and even burnout.
4. Short Circuit Protection
In case of short circuit faults in the output circuit, the system can quickly cut off the output loop and suppress the impact of short-circuit current, avoiding breakdown and burnout of the generator stator winding. It serves as the core safety protection for the electrical system.
5. Reverse Power Protection (Parallel Operation Exclusive)
Applicable to scenarios with multiple generator sets operating in parallel. This function prevents reverse power transmission from external power sources to the unit, avoiding reverse rotation and component damage of the generator, and ensuring stable and safe operation of the parallel system.
III. Core Advantages of Generator Protection System
High-quality low-voltage diesel generator sets adopt a graded protection logic of early warning first, shutdown later, different from the traditional single shutdown mode. Minor faults only trigger audio-visual alarms without interrupting temporary power supply, allowing maintenance to be arranged reasonably. Severe dangerous faults will trigger immediate shutdown and lockout, with fault codes recorded for rapid troubleshooting and efficient maintenance.
All our low-voltage diesel generator sets are equipped with full standard protection functions as default. Optional configurations including ATS automatic transfer switch, remote cloud monitoring, multi-unit parallel operation and intelligent operation & maintenance systems are available to meet diverse project requirements. Our products are widely applied in factories, commercial complexes, hospitals, schools, data centers, municipal security and other emergency power supply scenarios, providing safe, stable and reliable emergency power guarantee for critical loads.
Tips: The protection functions are safety backup measures. Regular inspection, maintenance and trial operation are essential to ensure the long-term reliability of emergency power supply of the unit.
