As core equipment for industrial, commercial and emergency power supply, diesel generator sets operate under complex working conditions for a long time, facing multiple risks such as mechanical wear, abnormal temperature and electrical overload. The Four-Protection System is a key configuration to ensure stable unit operation, avoid damage to core components and extend service life. By monitoring key parameters in real time, it automatically alarms and shuts down in case of abnormalities, building a solid safety defense line for the unit.
I. Definition and Value of the Four-Protection System
The four protections for diesel generator sets generally refer to four core functions in the industry: High Water Temperature Protection, Low Oil Pressure Protection, Overcurrent Protection, and Overload Protection. These four protections target the core risk points of the engine mechanical system, lubrication system and generator electrical system respectively, forming a dual protection system of "mechanics + electricity".
Its core value is: when the operating parameters of the unit exceed the safety threshold, it can quickly trigger protection actions without manual intervention, avoiding irreversible damages such as cylinder scoring, bearing seizure and winding burnout caused by fault expansion, and greatly reducing maintenance costs and downtime losses.
II. Detailed Explanation of the Four Protection Functions
(1) High Water Temperature Protection
High water temperature protection is the core defense for the engine cooling system, preventing overheating damage caused by poor heat dissipation.
- Monitoring Principle: A water temperature sensor installed on the engine block or radiator outlet collects coolant temperature in real time and transmits it to the control module.
- Protection Threshold: Under normal working conditions, the protection is triggered when the coolant temperature exceeds 90℃ at low speed, 95℃ at high speed, or 98℃ for some models.
- Action Mechanism: When the temperature exceeds the limit, the control module first sends out sound and light alarms; if the temperature keeps rising, it immediately cuts off the power supply of the fuel solenoid valve to stop fuel supply and force the unit to shut down, avoiding cylinder liner deformation, piston seizure and cylinder gasket damage.
(2) Low Oil Pressure Protection
Low oil pressure protection is the "lifeline" of the engine mechanical system, preventing dry friction and serious wear of moving parts due to insufficient oil pressure.
- Monitoring Principle: An oil pressure sensor installed in the main oil gallery monitors the oil pressure in real time and converts the pressure signal into an electrical signal feedback to the control module.
- Protection Threshold: The threshold varies slightly among different models. Generally, it is judged as low oil pressure fault when the oil pressure is lower than 0.1MPa at idle speed or 0.2–0.3MPa at rated speed.
- Action Mechanism: The unit alarms immediately when the pressure is below the safety value; if the pressure is not restored, the control module quickly cuts off the fuel circuit and enforces shutdown to eliminate fatal failures such as crankshaft bearing seizure, bearing bush ablation and camshaft wear.
(3) Overcurrent Protection
Overcurrent protection targets the generator output circuit, preventing abnormal current rise caused by load short circuit or instantaneous impact from burning generator windings and electrical components.
- Monitoring Principle: A current transformer collects three-phase current data at the generator output terminal, and the control module compares it with the rated current in real time.
- Protection Threshold: Overcurrent fault is determined when the output current exceeds 1.1–1.5 times the rated current of the unit (set according to the model).
- Action Mechanism: The control module alarms quickly when the current exceeds the limit; if the current remains abnormal, it immediately cuts off the generator output switch and shuts down to avoid insulation aging, breakdown of windings due to overheating, or damage to back-end electrical equipment.
(4) Overload Protection
Overload protection complements overcurrent protection, focusing on monitoring the power output status to prevent dual overload of the engine and generator when the load exceeds the rated power.
- Monitoring Principle: The control module calculates the actual output power of the unit in real time by collecting voltage, current and power factor data.
- Protection Threshold: The overload protection is triggered when the actual output power exceeds 1.1 times the rated power or more.
- Action Mechanism: It alarms first when the power exceeds the limit; if the load is not reduced, the control module executes shutdown to avoid engine stall, crankshaft fracture, generator winding burnout, excessive fuel consumption and excessive emissions.
III. Operation Logic and Control Mode

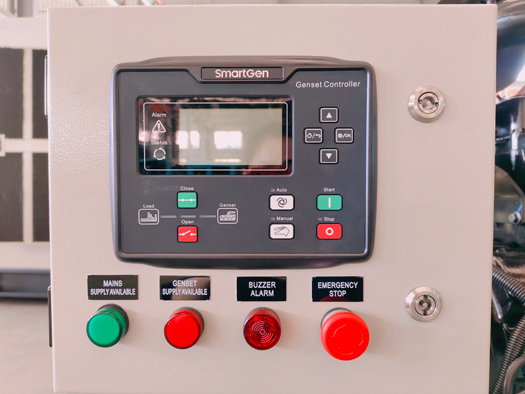

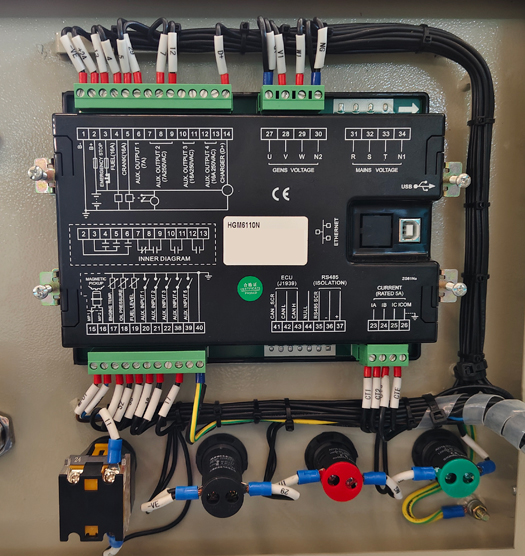

The core control unit of the Four-Protection System is the four-protection module (or integrated in the unit PLC/intelligent controller), with a complete closed-loop logic of "monitoring – judgment – execution":
- Real-time Monitoring: Sensors continuously collect parameters such as water temperature, oil pressure, current and power, and transmit them to the control module several times per second.
- Threshold Judgment: The control module compares real-time data with preset safety thresholds to identify abnormal states.
- Graded Action: It first triggers sound and light alarms (flashing indicator, buzzer) to allow manual handling; if the abnormality is not eliminated, it immediately executes shutdown instructions to cut off fuel and output circuits.
- Status Feedback: After shutdown, the module locks the fault code for maintenance personnel to quickly locate problems (such as E01 high water temperature, E02 low oil pressure, etc.).
In addition, the four-protection module usually integrates auxiliary monitoring functions such as starting battery voltage and engine speed monitoring to further improve operational safety.
IV. Daily Maintenance Points
The effectiveness of the four-protection function depends on the normal operation of sensors, control modules and actuators. Daily maintenance should focus on:
- Sensor Calibration: Regularly check whether the wiring of water temperature, oil pressure and current sensors is loose, and calibrate sensor accuracy annually to avoid maloperation or failure caused by data deviation.
- Control Module Inspection: Test the alarm and shutdown functions of the four-protection module monthly, simulate faults to trigger protection actions and ensure normal response.
- Actuator Maintenance: Regularly inspect actuators such as fuel solenoid valves and output switches, clean oil and impurities to ensure sensitive action.
- Parameter Verification: Check whether the protection threshold settings are reasonable according to the operating conditions, to avoid excessive threshold losing protection significance or too low threshold causing frequent false shutdowns.
V. Conclusion
The four-protection system of diesel generator sets is the "guardian deity" for safe equipment operation. The four functions perform their respective duties and cooperate with each other, fully covering core mechanical and electrical risks.
In the process of unit selection, installation and operation, attention must be paid to the configuration and maintenance of the four-protection system to ensure it is always effective. Only by building this safety barrier can diesel generator sets operate stably and reliably in emergency power supply, continuous production and other scenarios, creating greater value for users.
