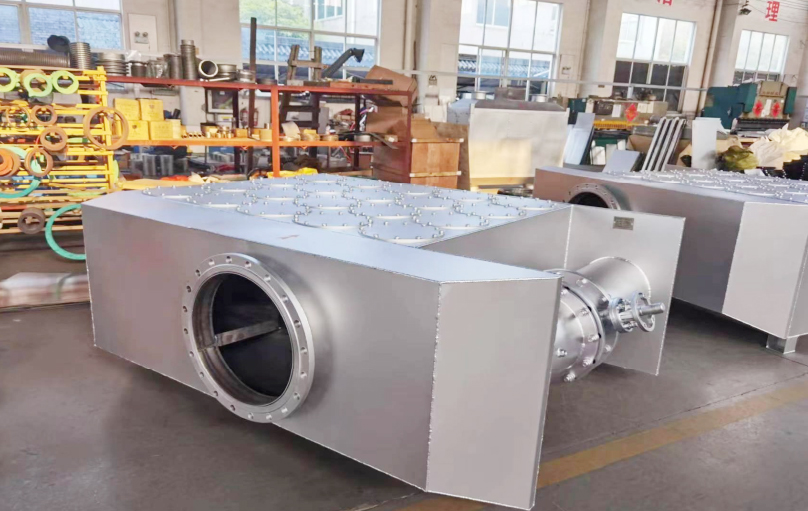

A dry exhaust purifier, commonly known as a Diesel Particulate Filter (DPF) or dry black smoke purifier, is a core after-treatment device used to remove particulate matter (PM), especially carbon soot (black smoke), from diesel generator exhaust. It operates through physical filtration without relying on any liquid additives, hence the term "dry."
I. Working Principle: Physical Filtration and Regeneration
Its working principle can be summarized as three processes: "Capture - Accumulate - Regenerate."
- Capture (Filtration):
- High-temperature exhaust gas from the engine enters the purifier and flows through a filter element made of porous ceramic (e.g., cordierite, silicon carbide) or sintered metal.
- The walls of the filter element are covered with micropores (typically smaller than 1 micron), which allow gases (e.g., nitrogen, carbon dioxide, water vapor) to pass through but trap larger solid particles (soot, ash) and soluble organic fractions (SOF) inside or on the surface of the filter.
- Accumulate:
- The trapped particles gradually build up within the filter, forming a "soot cake." As accumulation increases, the exhaust backpressure gradually rises.
- Regenerate:
- When the exhaust backpressure reaches a preset limit (affecting engine performance), the system must initiate the "regeneration" process to burn off the accumulated soot in the filter, restoring its filtration capability.
- Regeneration is the key process, primarily achieved through:
- Passive Regeneration: When the generator set operates under high load, the exhaust temperature naturally rises (typically >350°C). The trapped soot reacts with nitrogen oxides (NO₂) in the exhaust gas and oxidizes (burns off slowly). This process is continuous but usually insufficient for complete cleaning.
- Active Regeneration: Initiated forcibly when backpressure is too high and exhaust temperature is insufficient.
- Fuel-assisted (Burner): A small amount of diesel is injected upstream of the DPF and ignited by a burner, raising the gas temperature entering the DPF to above 600°C, causing rapid oxidation and combustion of the soot.
- Electric Heater Regeneration: The filter element is heated to the soot ignition point using electric heating elements.
- Microwave Regeneration: Utilizes microwave energy to selectively heat soot particles.
II. Core Components
A complete dry purification system typically includes:
- DPF Filter Element: The core filtration unit.
- Differential Pressure Sensor (Upstream/Downstream): Monitors the pressure difference across the filter, determines the soot load level, and triggers the regeneration signal.
- Temperature Sensors: Monitor inlet/outlet temperatures to control the regeneration process and prevent overheating damage.
- Regeneration Trigger & Control System: Automatically controls the start and stop of the regeneration program based on signals from pressure and temperature sensors.
- Regeneration Actuator: Such as a diesel injector, burner, electric heating device, etc.
- Housing & Insulation Layer: For pressure containment and heat retention.
III. Advantages and Disadvantages
| Advantages | Disadvantages |
| High Dust Removal Efficiency: Extremely high filtration efficiency for soot (black smoke), can reach >95%, reducing the Ringelmann blackness to level 0-1. | Increases Backpressure: Affects engine breathing efficiency, may lead to a slight increase in fuel consumption (approx. 1-3%). |
| No Consumable Fluid Required: Unlike SCR (which requires urea), it only needs electrical power and a small amount of diesel for regeneration during operation, with no additional consumable costs. | Complex Maintenance: Requires periodic ash cleaning (removal of non-combustible ash) and inspection. Failed regeneration can lead to filter clogging or meltdown. |
| Compact Structure: The system is relatively simple, has a small footprint, and is easy to install. | Sensitive to Fuel Quality: High sulfur content in diesel produces sulfates, and high ash content accelerates filter clogging, both affecting lifespan and performance. |
| Targets PM Primarily: The most direct and effective device for solving visible black smoke and particulate matter. | Does Not Treat NOx: Primarily targets particulate matter; has limited effect on nitrogen oxides. Requires combination with an SCR system for comprehensive compliance. |
| Suitable for Intermittent Operation: Compared to SCR which requires sustained temperature conditions, DPF is more adaptable to varying duty cycles. | High Initial Investment: Especially for purifiers used on high-power generator sets. |
IV. Main Application Scenarios
- Locations with Strict Emission Requirements: Backup power for data centers, hospitals, high-end hotels, office buildings, etc., to prevent black smoke pollution.
- Urban and Densely Populated Areas: To comply with local environmental regulations and avoid complaints.
- Indoor-Installed Generator Sets: Essential for purifying exhaust to ensure indoor air quality and ventilation system safety.
- Special Industries: Communication base stations, underground mining (explosion-proof type), ships, ports, etc.
- As Part of a Combined System: Integrated with SCR (for denitrification) and DOC (Diesel Oxidation Catalyst) to meet National IV / V or higher emission standards.
V. Important Considerations
- Fuel and Engine Oil: Must use low-sulfur diesel (preferably sulfur content <10ppm) and low-ash engine oil (CJ-4 grade or higher). High sulfur and ash are the main causes of DPF poisoning, clogging, and reduced lifespan.
- Operating Conditions: Avoid long-term operation of the generator set at extremely low loads. This results in low exhaust temperatures, preventing passive regeneration and triggering frequent, energy-intensive active regenerations.
- Monitoring and Maintenance:
- Closely monitor exhaust backpressure and regeneration indicator lights.
- Perform regular professional ash cleaning service (using compressed air or specialized cleaning equipment) to remove metal ash (calcium, zinc, phosphorus, etc.).
- Establish maintenance records, logging regeneration frequency and backpressure changes.
- System Matching: The purifier must be selected and matched based on the generator set's specific model, displacement, rated power, and exhaust flow rate. Incorrect matching severely affects performance and engine life.
- Safety: During regeneration, the purifier housing temperature is extremely high. Proper heat insulation, warning signs, and keeping away from flammable materials are essential.
Summary
The dry exhaust purifier (DPF) is a high-efficiency, mainstream technology for solving visible black smoke and particulate matter pollution from diesel generator sets. It captures carbon soot through physical filtration and operates cyclically via high-temperature regeneration. Its successful application highly depends on correct sizing, good fuel quality, appropriate generator operating conditions, and strict periodic maintenance. When selecting and using a DPF, it should be considered as an integral part of the overall engine-generator set system.
