As core power equipment in industrial production, engineering construction, emergency power supply and other scenarios, the operational stability of enclosed diesel generator sets is directly related to the smooth progress of various operations. Dust intrusion, as one of the main hidden dangers affecting unit life and reducing operational efficiency, has always been a focus of the industry. To help users better maintain equipment and extend the service life of generator sets, combined with years of industry experience and technical accumulation, this article systematically sorts out comprehensive dust-proof measures for enclosed diesel generator sets, providing professional and practical equipment maintenance guidance for users.
During the operation of diesel generator sets, dust can easily enter the interior through air intake and exhaust channels, cabinet gaps, etc., and attach to the surfaces of key components such as engines, generators, and electrical components. This not only causes component wear and poor heat dissipation, but also may lead to electrical short circuits, abnormal fuel supply and other faults. In severe cases, it may even cause unit shutdown and affect production progress. Based on this, a full-process dust-proof system of "seal blocking + multi-level filtration + air flow optimization + long-term management" is constructed from multiple dimensions such as structural design, system optimization and daily maintenance to comprehensively protect the stable operation of the unit.
I. Structural Sealing Foundation: Guarding the First Line of Dust-Proof Defense
As the "protective shell" of the unit, the sealing performance of the cabinet is the foundation of dust prevention. Enclosed diesel generator sets adopt cold-rolled steel plate or stainless steel, and ensure the overall structure of the cabinet is tight through precision welding and bolt splicing processes; all key parts such as joints, door panels, maintenance ports and observation windows are equipped with oil-resistant and aging-resistant rubber or silicone sealing strips, controlling the gap within 1mm to block dust intrusion from the source. At the same time, the top of the cabinet is designed with an inclination angle of ≥5° and equipped with an eaves, which can not only avoid water accumulation, but also reduce dust adhesion; the bottom is provided with drainage holes and dust-proof filters to achieve dual protection of water drainage and ground dust backflow, further enhancing the sealing effect.
For doors, windows and various openings, the unit adopts embedded double-sealed maintenance doors and control cabinet doors, which form a closed space when closed; the observation window uses double-layer glass with sealing strips, taking into account visibility and sealing performance; idle spare interfaces are closed with sealing plugs or covers to prevent dust from entering through unnecessary openings.
II. Optimization of Air Intake and Exhaust System: Balancing Dust Prevention and Heat Dissipation
The air intake and exhaust system is the main channel for dust intrusion and the core link of dust-proof work. In the unit design, the principle of "paying equal attention to ventilation and heat dissipation and dust-proof protection" is adhered to, and the air intake and exhaust system is optimized in multiple levels.

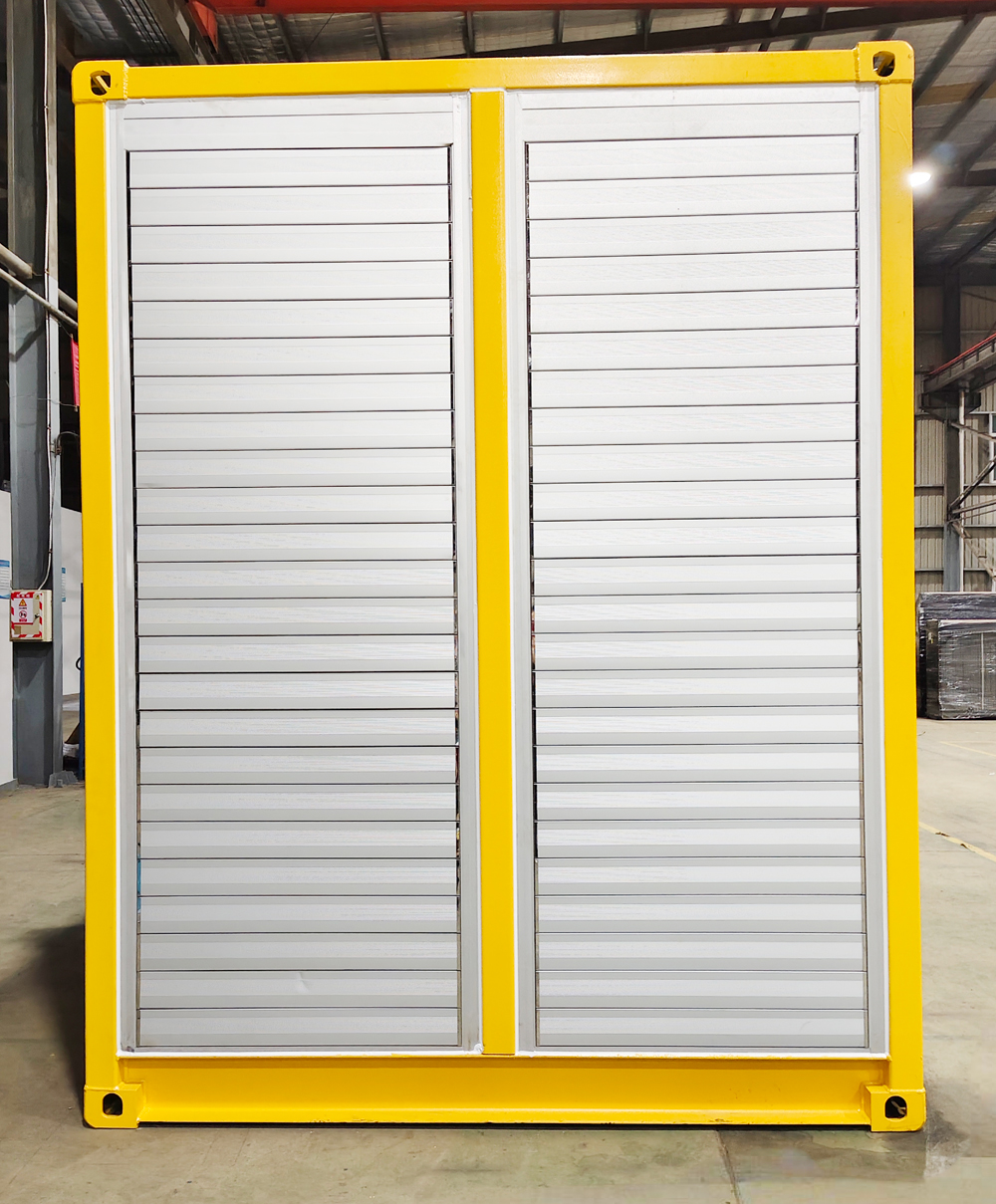

As the primary entrance for dust intrusion, the air intake adopts a combined scheme of "multi-level filtration + structural optimization". From the outside to the inside, it is equipped with rainproof and dust-proof shutters, primary filters, intermediate filters and the original engine air filter in turn, forming a multi-layer interception protection system: rainproof and dust-proof shutters (blade angle ≥45°) can block large particles of sand, rainwater and debris, and stainless steel is preferred for corrosion resistance and easy cleaning; G4-level primary filters can effectively intercept dust ≥5μm, adopting washable stainless steel mesh or nylon mesh for easy regular maintenance; in high-dust environments (such as mines, construction sites), additional F5-F8 level
intermediate filters can be installed to further filter fine dust ≥1μm, better protecting the engine air filter; as the last line of defense, the original engine air filter is recommended to be replaced every 100-200 hours in high-dust environments to ensure filtration effect. At the same time, the air intake is designed to be away from the ground (≥30cm) to avoid dust sources, and is equipped with a deflector to guide air flow directly to the radiator, reducing eddy current dust accumulation; in high-dust scenarios, electric or pneumatic sealed shutters can be selected, which automatically close when the unit is shut down and open during operation to achieve automatic dust prevention.
The air outlet is equipped with rainproof shutters and check valves (or gravity dampers), which can not only prevent outdoor dust and rainwater from flowing back when the unit is shut down, but also avoid hot air backflow affecting the intake air temperature; the exhaust channel is provided with an air guide groove to guide exhaust gas to be discharged quickly, reducing dust retention and accumulation in the cabinet.
III. Internal Layout and Component Protection: Reducing Dust Accumulation and Secondary Pollution
In addition to external protection, the internal layout and component protection of the unit are also important. In the unit design, the internal space is scientifically divided, and an independent heat dissipation area is set to separate the diesel engine, generator and exhaust channel, avoiding the circulation of hot air and dust inside and reducing the hidden danger of dust accumulation. At the same time, a forced ventilation fan with air volume ≥1.1 times the heat dissipation demand is equipped to form a positive pressure environment inside the cabinet (the air pressure inside the cabinet is slightly higher than the outside), preventing external dust from entering from the inside; the corners inside the cabinet adopt arc transition design to eliminate dust accumulation dead corners and facilitate daily cleaning.
For key components such as generators, diesel engines and control panels, breathable dust covers are installed to reduce direct dust adhesion; electrical wiring is closed with flame-retardant PVC pipes or metal trunking to prevent short circuits or poor contact caused by dust adhesion; peripheral equipment such as storage batteries and fuel tanks are sealed and protected to avoid dust entering the electrolyte or fuel, eliminating secondary pollution and equipment faults.
IV. Strengthened Protection for Special Scenarios: Adapting to Various Complex Working Conditions

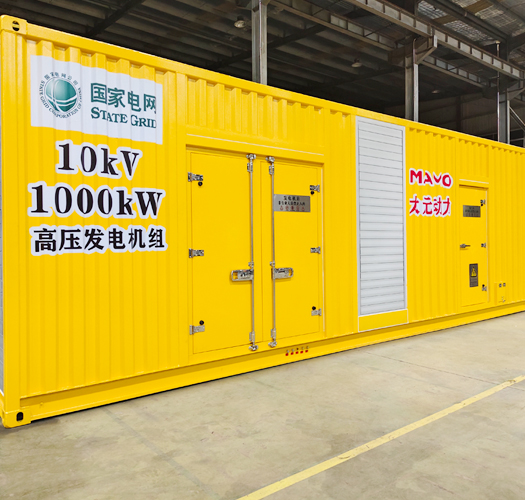

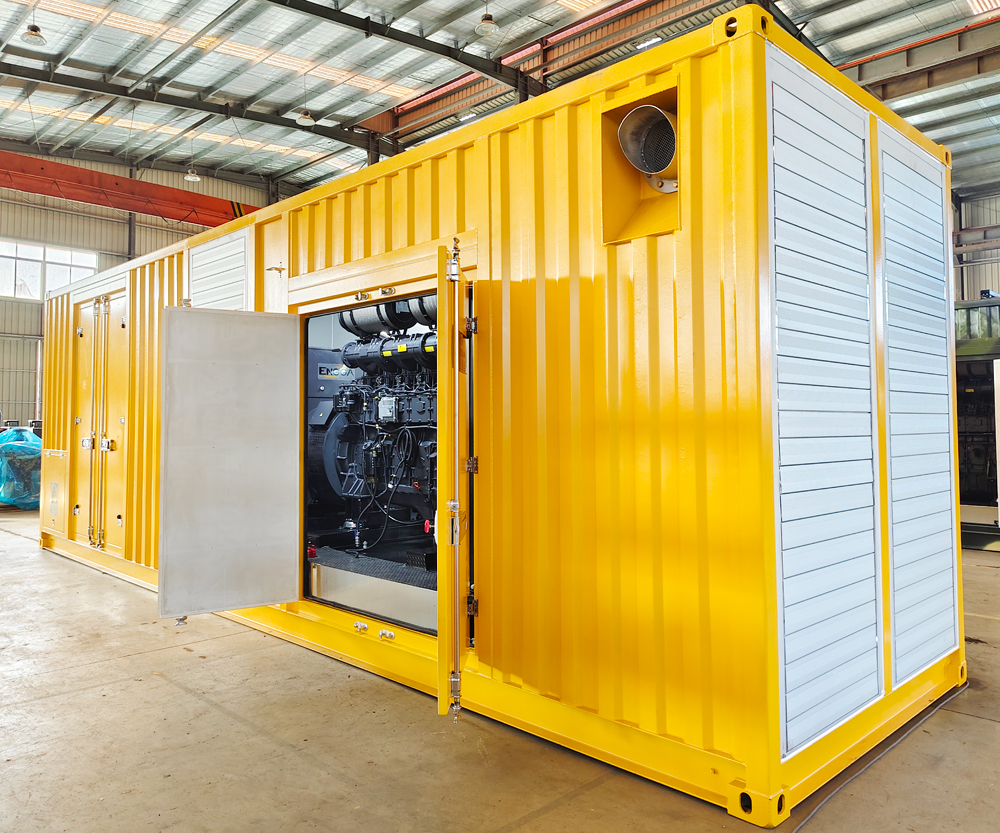

Considering the differences in dust concentration in different scenarios, customized enhanced dust-proof schemes can be formulated for various special working conditions. For high-dust environments such as mines, construction sites and deserts, the air intake is upgraded to a bag filter or cartridge dust collector with a filtration efficiency of ≥95%, and a fully sealed cabinet and positive pressure ventilation design are adopted to reduce the frequency of door opening and minimize dust intrusion; for coastal and high-humidity environments, the dust-proof net and filter are made of 316 stainless steel, and the cabinet is subjected to anti-corrosion spray treatment with a thickness of ≥80μm to prevent seal failure caused by salt spray corrosion; for container-type units, a standard container sealing structure is adopted, and special sealant treatment is applied to door gaps and corner fittings, and a dust collection tank is set at the bottom for regular purging to adapt to complex outdoor operating environments.
V. Long-Term Maintenance and Management: Ensuring Sustained and Stable Dust-Proof Effect
A good dust-proof effect is inseparable from standardized daily maintenance. It is recommended that users establish a sound maintenance management system: regularly inspect and clean air intake and exhaust shutters, dust-proof nets, primary/intermediate filters, check them weekly, clean or purge them every 1-2 weeks, and replace them immediately if damaged; purge or vacuum the dust inside the cabinet monthly, focusing on cleaning the radiator, air filter surroundings and electrical components; in high-dust environments, check the engine air filter every 50-100 hours, and replace it immediately if blocked or damaged. At the same time, check the aging and cracking of the sealing strips monthly and replace them in time; inspect the air intake and exhaust system to ensure there is no blockage or air leakage, and the positive pressure ventilation is normal; avoid long-term operation in dusty weather, and clean the air filter and dust inside the cabinet in time after operation in high-dust environments; control the frequency of personnel entering and exiting the cabinet, close the door immediately after entering and exiting, and reduce dust entry.
The industry has always been user-oriented, focusing on improving the operational stability and service life of equipment, and constantly optimizing product design and technical schemes. This sorting out of dust-proof measures for enclosed diesel generator sets not only provides practical maintenance guidance for users, but also demonstrates the professional accumulation in the field of equipment protection. In the future, we will continue to deepen technological innovation, launch more high-quality products and professional services adapted to various working conditions, and escort the production operations of users.
