In critical power consumption scenarios such as factory workshops, hospital computer rooms, data centers, and high-rise buildings, mains power interruption often leads to equipment shutdowns, data loss, production stagnation, and even safety accidents. To ensure continuous power supply, most standby power supply systems adopt the combination of diesel generator set + Automatic Transfer Switch (ATS). Many users only know that this set of equipment can supply emergency power, but are unclear about the connection logic and working principles of the two devices. Improper connection and commissioning frequently cause faults such as failure of generator startup, power switching failure, and short-circuit tripping. This article comprehensively explains the connection knowledge, common faults and solutions of diesel generator sets and ATS in plain language.
I. Understanding of Core Equipment: Cooperative Power Supply Devices
To understand the connection logic, it is essential to clarify the functional positioning of the two core devices, which form a complementary relationship between power supply equipment and switching control equipment.

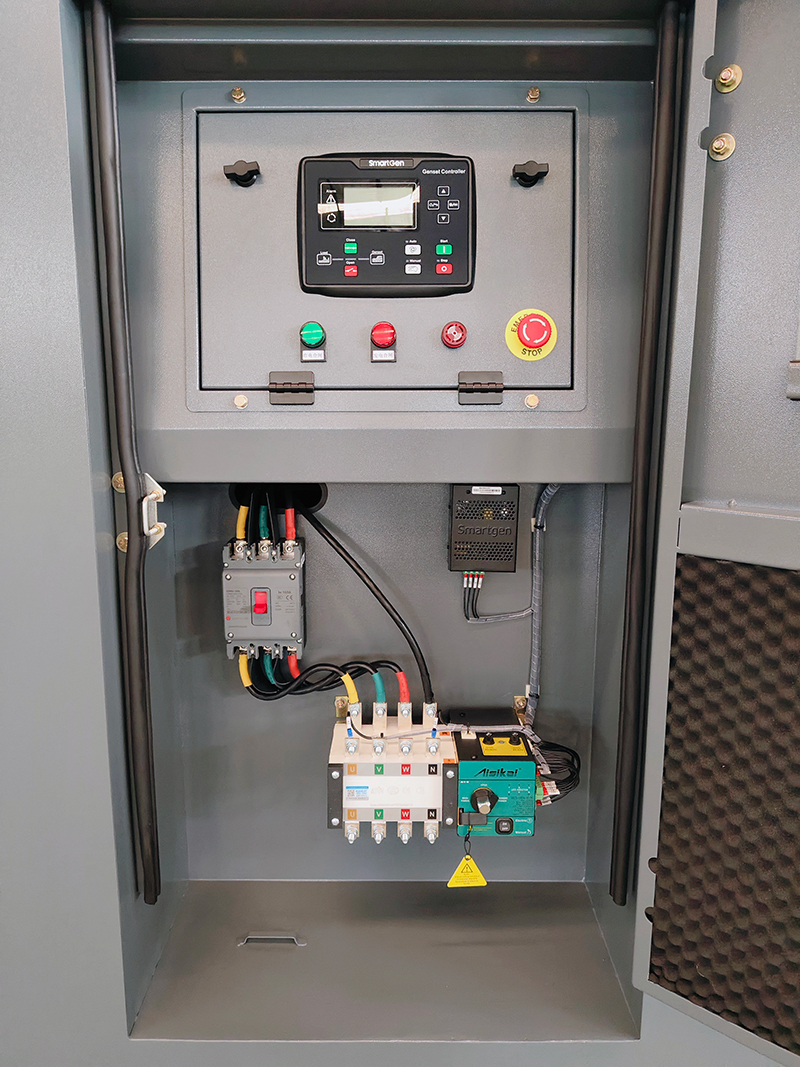

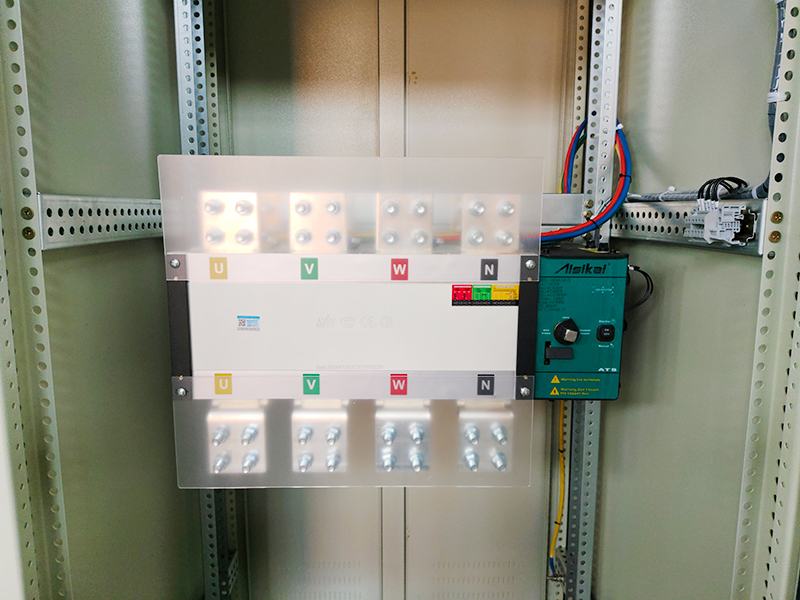

The Automatic Transfer Switch (ATS) acts as the "power dispatcher" of the entire system, with the core function of monitoring the status of dual power sources and completing automatic power switching. It is connected to two independent power sources: the municipal mains power for daily use and the standby power from the diesel generator set. Under normal conditions, the ATS keeps the mains circuit closed to ensure regular power supply for loads. When the mains power fails, experiences undervoltage or phase loss, the ATS sends control signals, cuts off the mains power, and switches to the standby power supply. When the mains power is restored, it automatically switches back to the mains supply and shuts down the diesel generator set.

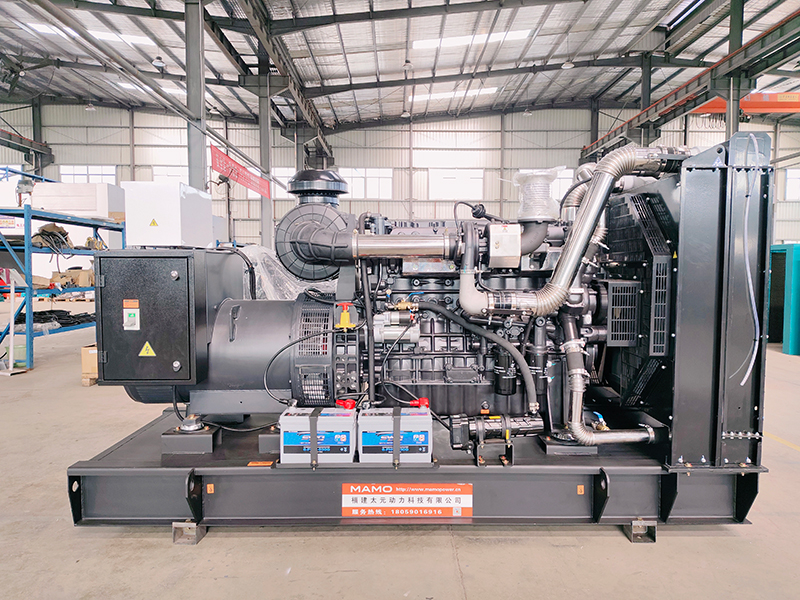

The diesel generator set serves as the "emergency power bank" of the system, generating power temporarily for loads only when the mains power fails. It has no automatic switching function and cannot judge the mains status independently. It relies entirely on signal linkage with the ATS to realize automatic startup, shutdown and regulated power supply. The precise connection between the two devices is the core guarantee for the normal operation of the standby power supply system.
II. Standard Connection Principle: Full-Automatic Power Switching Process
The connection between diesel generator sets and ATS is not a simple circuit connection, but a dual coordination mechanism of signal linkage and power circuit connection. The entire full-automatic switching process consists of four stages without manual intervention.
1. Normal Power Supply Stage
When the mains power operates stably, the ATS continuously monitors the voltage, phase and frequency of the mains power and locks the mains power supply circuit by default. At this time, the diesel generator set is in standby state. The control system receives the normal signal from the ATS and keeps shutdown standby with no power output, and the entire system is powered by the municipal mains.
2. Generator Startup Stage upon Mains Failure
When the mains power suffers power failure, undervoltage, three-phase phase loss and other faults, the ATS detects abnormal power conditions. After a short delay (3-5 seconds to avoid instantaneous voltage fluctuation), it immediately sends a start commsetand to the controller of the diesel generator set through the connecting signal line. Upon receiving the signal, the generator set automatically starts up, conducts idling preheating, and quickly reaches the rated speed and rated voltage.
3. Emergency Power Supply Stage after Power Switching
After the generator set generates stable power, it feeds back a normal voltage signal to the ATS. After confirming that the standby power supply meets the standards, the ATS completely cuts off the mains circuit first and then closes the generator power circuit. The mechanical interlock structure prevents parallel connection of the two power sources, enabling the load equipment to switch seamlessly to diesel generator power supply and ensure uninterrupted power consumption.
4. Reset and Shutdown Stage after Mains Restoration
When the municipal mains power is fully restored and stable, the ATS detects qualified mains parameters. After a delay of 1 to 3 minutes (to eliminate instantaneous mains fluctuation), it automatically switches back to the mains power supply mode and cuts off the output circuit of the generator set. Meanwhile, it sends a shutdown command to the generator, which will automatically shut down after no-load cooling and return to standby state. The entire system resets and waits for the next emergency trigger.
III. Typical Common Faults and Causes in Connection Operation
In the installation, commissioning and long-term operation of equipment, most failures of standby power supply are caused by connection faults between the generator set and ATS, rather than damage to the equipment itself. The following are the most common typical faults and their core causes in the industry.
1. Failure of automatic generator startup after mains power failure
This is the most frequent connection fault. The core cause is not generator failure, but interrupted signal connection. First, loose, wrongly connected or aging broken signal lines between the ATS and the generator controller prevent the transmission of start commands. Second, incorrect ATS parameter settings, such as excessive fault detection delay or disabled start signal output function. Third, the generator controller is set to manual mode instead of automatic standby mode, failing to receive ATS linkage signals.
2. ATS fails to switch power after successful generator startup
In some scenarios, the generator starts and generates power normally after mains failure, but the load remains powered off without successful switching. The main causes include: faulty ATS detection circuit that cannot identify qualified voltage output by the generator and rejects switching; mismatched phase and frequency between the two power sources triggering the ATS protection mechanism to prohibit switching; mechanical jamming or faulty interlock mechanism of the ATS leading to unclosed circuit.
3. Continuous no-load operation of the generator after mains restoration
After the mains power is restored and the system switches back to mains power supply, the diesel generator keeps running without automatic shutdown. The fundamental problem is invalid shutdown connection signal. The ATS fails to output normal shutdown reset signals, the shutdown signal line is open-circuited, or the generator controller has abnormal shutdown delay parameters. This makes the generator unable to receive reset commands, resulting in long-term no-load operation, which not only wastes fuel but also causes engine carbon deposition and service life loss.
4. Tripping and short-circuit faults during power switching
In a few cases, high-risk hidden dangers such as air switch tripping, circuit short-circuit and sparking occur at the moment of switching, which are mainly caused by non-standard installation. The construction fails to follow the break-before-make switching logic, resulting in transient parallel connection of the two power circuits. In addition, reversed phase connection of mains and generator power or chaotic circuit wiring causes phase-to-phase short circuit and voltage conflict during switching, triggering protection device tripping.
5. False startup and repeated power switching
The generator frequently starts accidentally and the power supply switches repeatedly without actual mains faults, which is mainly caused by improper parameter commissioning. The ATS voltage detection threshold is set too sensitive, which misjudges slight mains fluctuation and instantaneous voltage drop as power faults and triggers linkage startup. Meanwhile, excessively short delay parameters fail to filter transient grid fluctuation, leading to frequent false system actions.
IV. Standard Installation and Commissioning Key Points for Connection Systems
Standardized installation, accurate commissioning and parameter matching are the core measures to eliminate various connection faults and ensure long-term stable operation of the system.
1. Standard wiring to eliminate circuit hidden dangers
The main power circuit shall strictly distinguish the mains input terminal, generator input terminal and load output terminal to avoid reverse connection. The linkage signal lines shall be wired in accordance with the terminal specifications in the equipment manual, with clear distinction of start, shutdown and signal feedback lines and complete line identification to prevent mixed connection and virtual connection. Meanwhile, the ATS must be equipped with electrical and mechanical double interlock to fundamentally avoid parallel connection of dual power sources and prevent short-circuit accidents.
2. Matching equipment parameters and unifying operation logic
During commissioning, the rated voltage and frequency of the generator set must match the ATS specifications, with 380V/50Hz as the standard for conventional industrial and civil scenarios. Reasonably set switching delays: the mains fault start delay is recommended to be 3-5 seconds to avoid transient fluctuation interference, and the mains restoration shutdown delay is set to 1-3 minutes to ensure stable mains power before switching and resetting. In addition, both the generator controller and ATS must be set to full-automatic operation mode.
3. Reliable grounding protection and insulation treatment
The entire connection system must be reliably grounded. Signal lines and power lines shall be well insulated to prevent short circuits and signal interference caused by line moisture and wear. Strong and weak current lines shall be laid separately to avoid weak current linkage signal disturbance and system false triggering caused by strong current interference.
V. Daily Maintenance for Long-Term Stable Connection Operation
More than 80% of connection faults between diesel generators and ATS stem from long-term idle operation and insufficient maintenance. Regular simple maintenance can greatly reduce the fault probability. First, conduct monthly simulated power failure tests by manually cutting off the mains power to check the whole process of automatic generator startup, power switching and reset shutdown. Second, regularly inspect and fasten loose signal terminals, and replace aging and damaged lines. Third, clean internal dust and oil stains of the ATS, and check the flexibility of the mechanical switching mechanism to avoid jamming. Fourth, verify equipment parameters regularly to prevent parameter tampering caused by misoperation.
VI. Conclusion
The connection between diesel generator sets and ATS is essentially a linkage system of ATS signal control and generator set execution response. The core value of the complete power supply system lies in the precise coordination of the two devices rather than the performance of single equipment. Most power supply failures are not caused by equipment damage, but by connection problems including non-standard wiring, incorrect parameter commissioning and failed signal transmission.
For operation and maintenance personnel, sorting out the linkage logic, standardizing installation and commissioning, and adhering to regular inspections can effectively eliminate various connection faults. This enables the standby power supply system to respond quickly and operate stably during mains failures, building a solid power guarantee for key power consumption scenarios.
