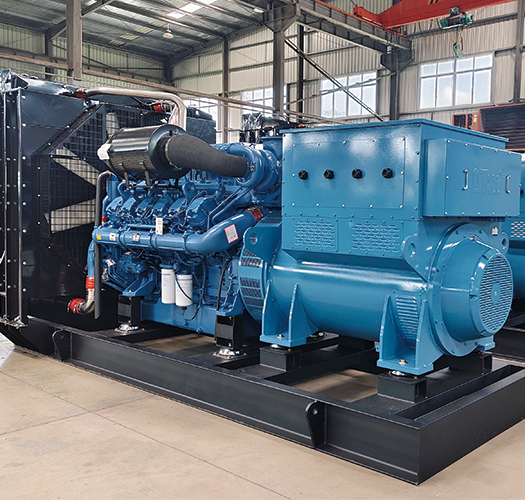

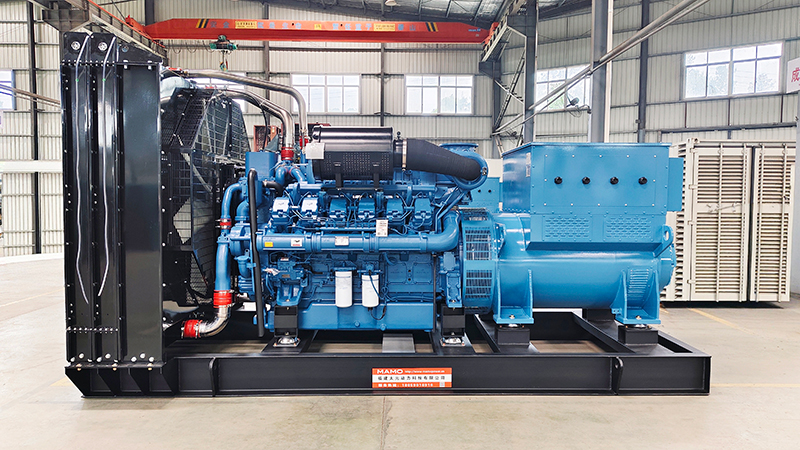

In the power distribution system of high-voltage generator sets, apart from core equipment such as incoming cabinets, feeder cabinets, and grounding resistance cabinets, the PT cabinet is an inconspicuous yet indispensable key auxiliary device. Most people focus on the power generation and transmission links of high-voltage units, while overlooking the critical role of PT cabinets in ensuring the safe, stable, and accurate operation of generator sets. Simply put, the PT cabinet is the core unit for voltage signal acquisition, monitoring, protection and power supply of high-voltage generator sets. It serves as a bridge between the secondary control system and the primary high-voltage main circuit of the unit, known as the "neural center" of the high-voltage power generation system.
The core component of a PT cabinet is the Potential Transformer (PT). Working on the principle of electromagnetic induction, it precisely steps down high voltage of 10kV, 35kV and other levels output by generator sets to a standard low-voltage signal of 100V, while realizing electrical isolation between high and low voltage systems. This eliminates the safety risks of direct high-voltage detection and provides identifiable standard voltage signals for various instruments, protection devices and control systems, forming the fundamental basis for all functions of the PT cabinet.
I. Basic Structure of PT Cabinets: Compact and Fully Functional

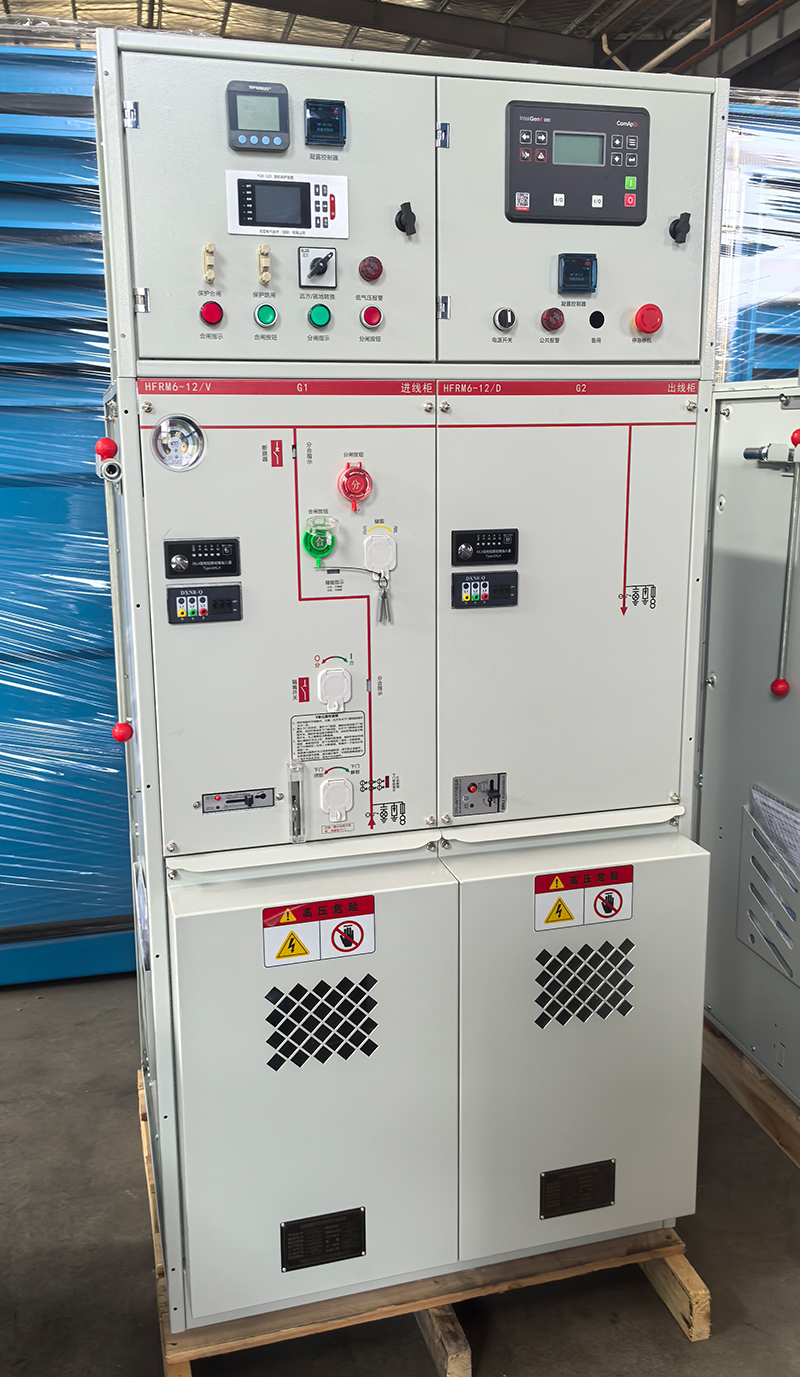

PT cabinets matched with high-voltage generator sets feature a compact structure and precise configuration, adapting to the operating characteristics of generator sets including continuous operation, frequent parallel connection and large load fluctuations. All core components perform their respective functions and work in coordination. The main components include a cabinet shell, trolley mechanism, potential transformers, high-voltage fuses, surge arresters, live display devices and secondary wiring terminals.
As the core acquisition component, potential transformers are commonly configured with V-V connection, Y-Y connection, open-delta connection and other wiring modes, which adapt to different requirements such as voltage measurement and ground fault detection. High-voltage fuses provide overload and short-circuit protection for the circuit to prevent transformer burnout. Surge arresters absorb high-voltage surge voltages and protect secondary equipment from lightning strikes and voltage fluctuations. Live display devices intuitively indicate the live state of the cabinet to ensure the safety of operation and maintenance. The complete equipment integrates detection, protection and safety warning functions.
II. Four Core Functions of PT Cabinets in High-Voltage Generator Sets
1. Accurate Voltage Measurement and Real-Time Unit Operation Monitoring
The high voltage output by high-voltage generator sets cannot be directly detected by conventional instruments. Through the step-down conversion of potential transformers, the PT cabinet converts the primary high-voltage bus voltage into a standard 100V secondary low-voltage signal, which is synchronously transmitted to various measuring instruments including voltmeters, power meters, power factor meters and electric energy meters.
Operation and maintenance personnel can obtain key operating parameters in real time, such as unit output voltage, load power, power consumption and power factor, to accurately grasp the operating status of the unit. Meanwhile, high-precision PTs (Class 0.2) meet the accuracy requirements of electric energy metering, providing reliable basis for power data statistics and energy consumption accounting. They avoid operation and maintenance problems and settlement disputes caused by measurement deviations, acting as the "eyes" for daily operation monitoring of generator sets.
2. Supporting Unit Synchronization and Grid Connection to Ensure Safe and Stable Parallel Operation
Most high-voltage generator sets need parallel operation of multiple units or grid-connected power generation with the high-voltage power grid. Synchronization and grid connection is one of the most critical and high-risk links in unit operation, and the PT cabinet serves as the core guarantee for synchronization operation.
The control system cannot directly identify the parameters of high-voltage bus voltage. It relies on the accurate voltage signals collected by the PT cabinet to compare three core parameters (voltage amplitude, frequency and phase) between the standby grid-connected unit and the operating bus in real time. The system will judge that the grid connection conditions are met and complete stable closing only when all three parameters match the standard. Without the accurate sampling of PT cabinets, the grid connection parameters cannot be precisely calibrated, which is highly likely to cause grid connection impact and excessive circulating current. In severe cases, it will burn out generator windings, damage power distribution equipment and trigger major power faults. Therefore, the PT cabinet is an essential prerequisite for safe parallel operation and stable grid connection of high-voltage units.
3. Providing Criteria for Relay Protection to Build a Solid Safety Barrier for Units
This is the most critical safety value of PT cabinets and the core function that distinguishes them from ordinary measuring equipment. High-voltage generator sets are prone to faults such as overvoltage, undervoltage, loss of voltage and single-phase grounding during operation. Failure to handle these faults in a timely manner will directly damage core unit equipment, cause power outages, equipment burnout and even safety accidents. All voltage-based protection functions depend on the sampling signals of PT cabinets.
With potential transformers of different wiring modes, PT cabinets realize all-round fault monitoring and protection. First, overvoltage and undervoltage protection monitors bus voltage fluctuations in real time and triggers protective tripping quickly when the voltage exceeds the safety threshold, so as to prevent equipment insulation breakdown caused by high voltage and unit load faults caused by low voltage. Second, loss-of-voltage protection locks the equipment state in case of sudden power failure of the power grid or units, avoiding impact faults caused by automatic equipment startup after power restoration. Third, zero-sequence voltage detection based on open-delta connection accurately identifies single-phase grounding faults of the system, assists in locating fault points, quickly cuts off faulty circuits and prevents fault expansion, comprehensively protecting the safety of generator sets and power distribution systems.
4. Supplying Low-Voltage Auxiliary Power to Meet Computer Room Operation and Maintenance Requirements
There are a large number of low-voltage equipment for control, lighting and monitoring in high-voltage generator room. The PT cabinet can take the converted low voltage as stable auxiliary power supply for the computer room, powering the secondary control circuits, signal indicator lights, remote monitoring modules and small operation and maintenance equipment of the cabinet.
Compared with independent external power supplies, the power supplied by PT cabinets is derived from the unit’s own bus voltage, featuring higher synchronization and stability. It ensures the continuous power supply of the secondary control system under all working conditions such as unit startup and shutdown, faults and grid connection, and guarantees the full-time online operation of unit control logic, fault alarm and data transmission, providing basic power support for automatic operation and operation & maintenance monitoring of generator sets.
III. Key Operation and Maintenance Points of PT Cabinets
As the perception and protection core of high-voltage generator sets, the operating state of PT cabinets directly determines unit stability. Daily operation and maintenance focuses on three key points. First, regularly calibrate the accuracy of potential transformers to ensure accurate voltage sampling and metering data, and avoid grid connection failures and incorrect protection actions caused by parameter deviations. Second, inspect the state of fuses, surge arresters and wiring terminals, and replace aging and failed components in a timely manner to prevent transformer burnout due to overload and equipment breakdown caused by surge voltage. Third, keep the cabinet dry and clean to avoid insulation degradation and short-circuit faults caused by humidity and dust.
IV. Summary: Small Cabinet with Great Significance
Although compact in size and not directly involved in the main energy transmission of power generation and transmission, the PT cabinet is the core carrier for accurate monitoring, safe grid connection, fault protection and auxiliary power supply of high-voltage generator sets. It solves three core problems: undetectable high-voltage signals, unavailable criteria for high-voltage system protection, and missing reference for unit grid connection, serving as the basic guarantee for the safe, stable and automatic operation of high-voltage generator sets.
The PT cabinet plays an irreplaceable role in both daily power generation operation, parallel operation of multiple units and emergency fault protection. Mastering the functional principles and operation & maintenance key points of PT cabinets is the key to optimizing the operation and maintenance management of high-voltage generator sets and avoiding power faults.
